葡萄牙標準工業電纜XZ1
These cables with zero halogen are high security cables. In case of fire, they do not emit toxic or corrosive gases, thereby protecting public health and avoiding any possible damage to electronic equipment. For this reason, its use is recommended in public places such as: hospitals, schools, museums, airports, bus terminals, shops in general, tunnels, the underground, etc., as well as in calculation centres, offices, production plants, laboratories, etc.
IEC 60502-1

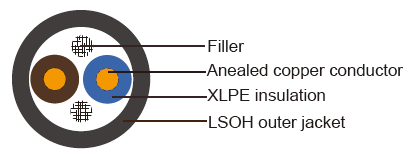

Conductor: Plain copper conductor, class 1(<6mmsq)/class2(>6mmsq) to IEC 60228
Insulation: XLPE insulation
Colour Code : HD 308 S2
Filler: Not fibrous and not hygroscopic fill
Over Sheath: Flexible black LSOH outer jacket
Minimum bending radius: 12 x ?
Operation temperature range: -15 °C to 90 °C
Short-circuit temperature: 250 °C
Working Voltage: 600/1000 volts
Test voltage: 3500 volts
Halogen free: IEC 60754-1, EN 50267-2-1
No corrosive gases: IEC 60754-2, EN 50267-2-2
No toxic gases: NES 02-713, NF X 70-100 Low smoke density: IEC 61034, EN 50268-2
Flame retardant: IEC 60332-1, EN 50265-2-1
Non-flame propagating? IEC 60332-3, EN 50266-2
| NOMINAL CROSS SECTION | OVERALL DIAMETER (APPROX.) | CABLE WEIGHT (APPROX.) | NOMINAL CROSS SECTION | OVERALL DIAMETER (APPROX.) | CABLE WEIGHT (APPROX.) |
|---|---|---|---|---|---|
| MM2 | MM | KG/KM | MM2 | MM | KG/KM |
| 1 x 10 | 85 | 135 | 4 x 6 | 140 | 355 |
| 1 x 16 | 95 | 195 | 4 x 10 | 165 | 550 |
| 1 x 25 | 110 | 295 | 3 x 16 + 1 x 10 | 185 | 745 |
| 1 x 35 | 120 | 385 | 3 x 25 + 1 x 16 | 220 | 1140 |
